Fiber-optic sensors through-beam FU-66Z/67/77TZ/68/49U/7F diffuse reflective M3 M4
Related Models:
| FU-66 (M4 Reflection with Line) | FU-66TZ (M4 Right-Angle Reflection) | FU-66Z (M4 Reflection) |
| FU-67 | FU-67V | FU-68 |
| FU-69X | FU-5F (3MM Diameter Through-Beam) | FU-6F (M6 Reflection) |
| FU-7F (M4 Reflection) | FU-35TZ (M3 Right-Angle Reflection) | FU-35FA (M3 Reflection) |
| FU-35FZ (M3 Reflection) | FU-77TZ (M4 Through-Beam Right-Angle) | FU-46 |
| FU-49X (1.5MM Diameter) | FU-79 | FU-24X |

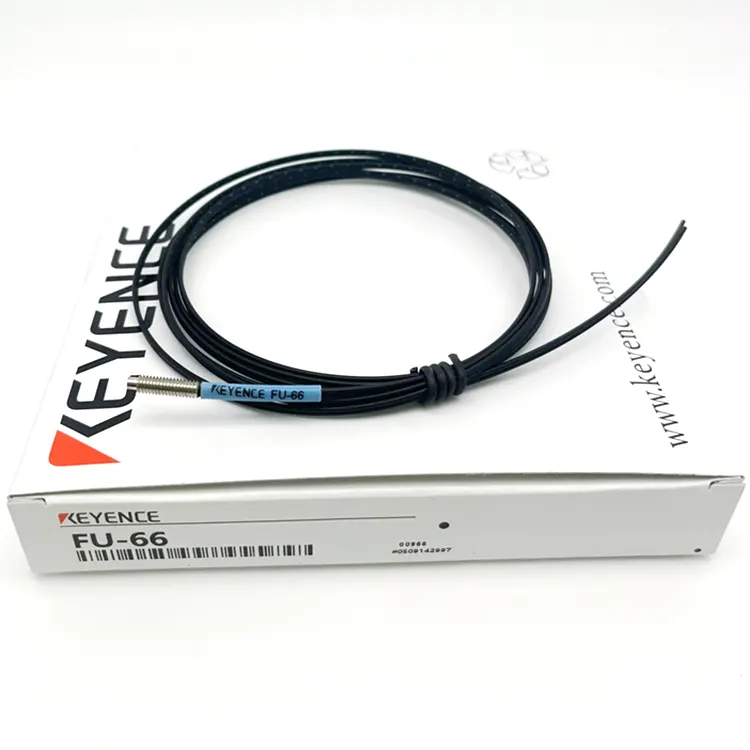

Model: FU-66
Size: M4
Detection Configuration: Parallel Type
Fiber Optic Device Length: 2m Free Cutting
Fiber Optic Device Diameter: 1.3×2
Shape: Straight Type
Minimum Bending Radius: R25 mm
Minimum Detectable Object: 0.005 mm Gold Wire
Environmental Resistance (Ambient Temperature): -40 to +70°C
Weight: Approximately 10g
Model: FU-66Z
Size: M4
Detection Configuration: Parallel Type
Fiber Optic Device Length: 2m Free Cutting
Fiber Optic Device Diameter: 1.3×2
Shape: Straight Type
Minimum Bending Radius: R2 mm without bending
Minimum Detectable Object: 0.005 mm Gold Wire
Environmental Resistance (Ambient Temperature): -40 to +50°C
Weight: Approximately 10g
Model: FU-66TZ
Size: M6
Detection Configuration: Parallel Type
Fiber Optic Device Length: 2m Free Cutting
Fiber Optic Device Diameter: 2.2×2
Shape: Threaded
Minimum Bending Radius: R2 mm without bending
Minimum Detectable Object: 0.005 mm Gold Wire
Environmental Resistance (Ambient Temperature): -40 to +50°C
Weight: Approximately 32g
Model: FU-68
Size: M4
Detection Configuration: Parallel Type
Fiber Optic Device Length: 2m Free Cutting
Fiber Optic Device Diameter: 1.0×2
Shape: Threaded
Minimum Bending Radius: R4 mm flex-resistant
Minimum Detectable Object: 0.005 mm Gold Wire
Environmental Resistance (Ambient Temperature): -40 to +70°C
Weight: Approximately 8g
Model: FU-69X
Size: M3
Detection Configuration: Parallel Type
Fiber Optic Device Length: 1m
Fiber Optic Device Diameter: 1.0×2
Shape: Threaded
Minimum Bending Radius: R4 mm flex-resistant
Minimum Detectable Object: 0.005 mm Gold Wire
Environmental Resistance (Ambient Temperature): -40 to +70°C
Weight: Approximately 3g
